Assembly & Maintenance Exercise : Refrigeration

Assembly & Maintenance Exercise : Refrigeration
Assembly & Maintenance Exercise : Refrigeration
Product Code : CEI 114
Brand Name : Chhabra Engineers
Product Description

Assembly & Maintenance Exercise: Refrigeration

Reading and understanding technical
documentation
- Planning and execution of assembly operations and
  sequences
- Making piping connections as per system diagram
- Electrical installation as per circuit diagram
- Commissioning and checking of a refrigeration unit
  following assembly.
- Familiarisation with the function of the components
  of a refrigeration system and of the complete
  system

Technical Description
Designed so that students can develop skills on how to undertake a complex engineering project. The skills developed are the planning, execution and checking of assembly; commissioning, and maintenance operations.

Specification

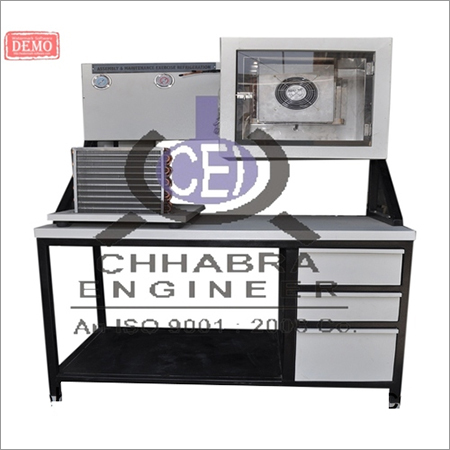

[1] Assembly project for providing training in the assembly of refrigeration units
[2] Construction of a refrigeration unit with a cooling chamber, from a complete parts set
[3] Temperature regulation using a thermostat
[4] Air-cooled condenser set with compressor
[5] Cooling chamber with built-in evaporator and fan
[6] Cooling chamber with large viewing window
[7] Assembly panel for assembly of refrigeration and electrical components
[8] Electrical assembly as per circuit diagram
[9] Simple piping of refrigeration circuit with bolted pipe connections
[10] Workbench with drawers to hold components
[11] CFC-free refrigerant R134a
[12] The kit forms part of the CEI assembly, maintenance and repair practice line
Condenser set
- power consumption: 190W
- refrigerating capacity: 373W at 5°C evap. temperature
- fan: 33W consumption
Liquid collector: approx. 1L
Evaporator
- power output: 50W at t0 =-6°C, DT1=8K
- heat exchanger area: 1.06m²
Cooling chamber with viewing window
