Basic Heat Pump Demonstrator

Basic Heat Pump Demonstrator
Basic Heat Pump Demonstrator
Send Inquiry
Product Code : CEI 111
Brand Name : Chhabra Engineers
Price And Quantity
  • Minimum Order Quantity
  • 1 Piece/Pieces
  • Price Range
  • 35000.00 - 300000.00 INR
Product Specifications
  • Type
  • Demonstrator
  • Material
  • Stainless Steel, Other
  • Power
  • 50 Watt (w)
  • Power Source
  • Electrical
  • Voltage
  • 220-240 Volt (v)
  • Color
  • White
Product Description

Basic Heat Pump Demonstrator

Familiarisation with the function of a heat pump / refrigeration unit
· Familiarisation with the main components of a heat pump
· Measurement of process pressures
· Thermodynamic cycle

Technical Description

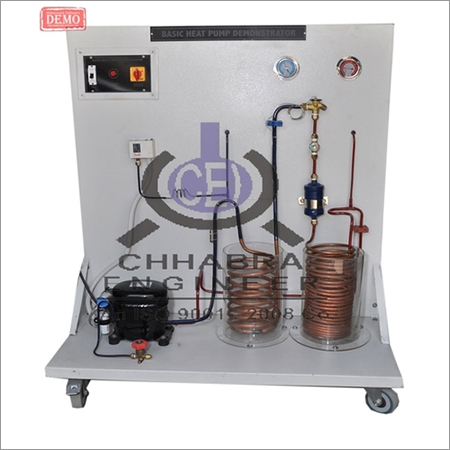

 This clearly laid out model demonstrates the principle of operation of a simple heat pump. Heat is transferred from one cylinder to another via heat exchange coils. The trainee can feel the "cold" and the "heat". The unit is equipped with 2 large manometers for displaying the refrigerant pressures and 2 thermometers to indicate the temperatures in the water tanks.
The refrigerant used is environmentally friendly.

Specification

1] Functional model of a water-to-water heat pump
[2] Coiled pipe evaporator/condenser, Cu
[3] Piston compressor, thermostatic expansion valve, pressostat, sight glass, 2 manometers
[4] 2 thermometers to determine the water temperatures in the tanks, -10...50°C
[5] Refrigerant R134a, CFC-free
[6] Components bolted to metal sheet
[7] 230V, 50Hz, 1 phase
Piston compressor: power consumption: 97W at
-10/32°C, refrigerating capacity: 222W at 5/32°C
Pressure switch: max. temperature difference that can be reached: 50°C
Manometer with temperature scale for R134a,  temperature scale: -60...80°C, measuring ranges:
-1...9bar / -1...24bar

Trade Information
  • Payment Terms
  • Letter of Credit at Sight (Sight L/C), Letter of Credit (L/C), Cash in Advance (CID), Cash Advance (CA)
  • Supply Ability
  • 1000 Per Month
  • Delivery Time
  • 1 Week
  • Main Export Market(s)
  • Africa, Middle East, Western Europe, Eastern Europe, South America, North America, Central America, Australia, Asia
  • Main Domestic Market
  • All India
