Basic Modular Refrigeration System

Basic Modular Refrigeration System
Basic Modular Refrigeration System
Product Code : CEI123
Brand Name : Chhabra Engineers
Product Description

Basic Modular Refrigeration System

Evacuating and charging
- Layout and function of components in a refrigeration
  system
- Basic principle of the thermodynamic cyclic process
- Fault-finding

Technical Description

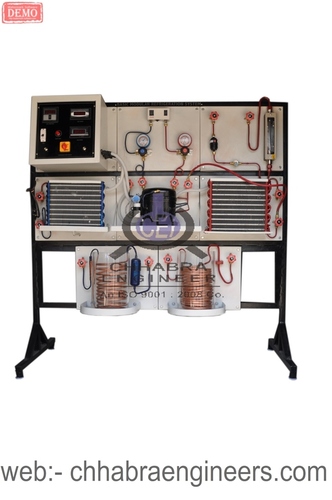

Using this training system various simple compression refrigeration systems can be set up. Components ready for use are fitted to 8 module panels: compressor, condenser, evaporator with capillary tube, a display and control panel, and a module with pressure switch and pressure gauge.
Specification

1] Modular training system for the assembly of a refrigerant cycle
[2] 8 self-contained modules each with a functional component/assembly
[3] Light aluminium support for fitting 6 modules
[4] Evaporator and condenser included both as air heat exchanger (finned tube heat exchanger) and water heat exchanger (with coil)
[5] Modules fitted with manual shut-off valves
[6] Connection via hoses
[7] CFC-free refrigerant R134a
[8] 230V, 50Hz, 1 ph. or 120V, 60Hz, 1 ph.
Hermetic piston compressor
- power consumption: 67W at -10/32°C
- refrigerating capacity: 151W at 5/32°C
Variable-area flow meter: 0.4...7.4L/h
Tank capacities
- evaporator water tank: 2L
- condenser water tank: 3L
Pressostat triggering pressure: LP: 1bar, HP: 14bar
Manometer
- intake pressure: 1...10bar relative
- delivery pressure: 1...30bar relative
Module plates: lxw: 370x340mm
