Car Air Conditioning Trainer

Car Air Conditioning Trainer
Car Air Conditioning Trainer
Send Inquiry
Product Code : CEI118
Brand Name : Chhabra Engineers
Product Description

Car Air Conditioning Trainer

Principle of operation, layout and usage of a car air conditioner
- Recognition of typical malfunctions and repair on an air conditioner
- Simulation of eight system faults
- Familiarisation with the typical components in an air

Technical Description
The refrigerant circuit contains a belt-driven compressor, an air-cooled condenser and an evaporator with cold air outlet and expansion valve. All components used in the trainer are typical parts found in automotive engineering, so it is relevant in practice.

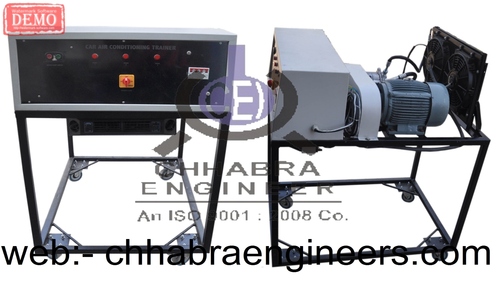

[1] Mobile, complete car air conditioning system
[2] l x w x h: 800x1200x1300mm, 120kg
[3] Simulation of 8 faults
[4] Drive motor with frequency converter
[5] Axial piston compressor
[6] Compact evaporator with expansion valve and fan
[7] Moment transmission motor-compressor using magnetic coupling, transmission ratio: 1:1
[8] System switched on using ignition switch
[9] Refrigerant R134a, CFC-free
[10] Internal power supply: 12VDC
[11] 400V, 50Hz, 3 phase

Drive motor: power rating: 4kW at 3000rpm
Compressor: 7 cylinders, refrigerating capacity: approx. 3kW at 3000rpm
Condenser: capacity: 6.6kW
Evaporator: capacity: 5.3kW
Measuring ranges: temperature: 4x -50...150°C; temperature (manometer): -60..80°C; flow rate: 10...95ltr/h; pressure: -1..9bar / -1...24bar; speed: 0...3000rpm; current: 0...10A
