Domestic Air Conditoner Module

Domestic Air Conditoner Module
Domestic Air Conditoner Module
Product Code : CEI119
Brand Name : Chhabra Engineers
Product Description

Domestic Air Conditioner Module

- Familiarisation with an air conditioning system for room cooling and its main components
- Familiarisation with various expansion elements:
- Operation with capillary tubes
- Operation with expansion valve
- Functioning of an evaporator
- Fault diagnosis and fixing

Technical Description
The experimental set-up is arranged on a clearly laid out board, which is mounted on the basic unit. The pipe connection between the basic unit and the additional module is via self-locking Schrader valves.

Specification

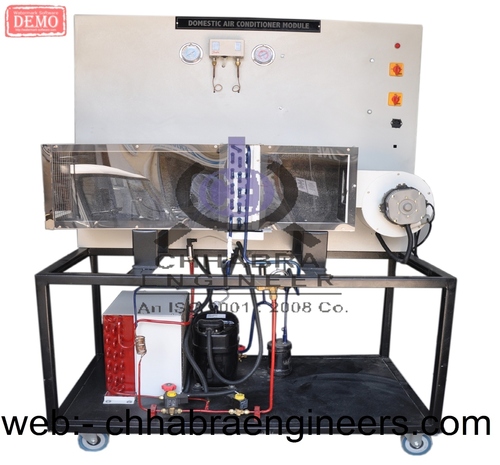

[1] Additional module with model of a simple air conditioning system
[2] l x w x h: 950x390x600mm, 35kg
[3] Ventilation duct, cross-section 136x136mm
[4] Expansion element selectable using solenoid valves: expansion valve and capillary tubes 1m
[5] Radial fan with regulating flap
[6] Lamellar evaporator with drip tray
[7] Determination of airflow rate by velocity measurement with Pitot tube
[8] 2 temperature sensors, 1 differential pressure transducer
[9] Controllable valves and equipment actuated by software

- Radial fan
- power consumption: 80W
- airflow rate: 255m³/h
- speed: 2350rpm
- Capillary tubes: length 1m
- Measuring ranges
- temperature: -40...150°C
- differential pressure: 0...10mbar
- Refrigerant R134a
