Refrigeration Training System

Refrigeration Training System
Refrigeration Training System
Send Inquiry
Product Code : CEI 112
Brand Name : Chhabra Engineers
Price And Quantity
  • Minimum Order Quantity
  • 1
  • Unit of Measure
  • Piece/Pieces
  • Price Range
  • 10000.00 - 80000.00 INR
Product Specifications
  • Type
  • Training System
  • Material
  • Stainless Steel, Other
  • Power
  • 50 Volt (v)
  • Power Source
  • Electrical
  • Voltage
  • 220-240 Volt (v)
  • Color
  • white
Product Description

Refrigeration Training System:-

Familiarisation with the layout of refrigeration
  systems
· Familiarisation with the main components of
  refrigeration systems
· Measuring relevant temperatures and pressures
· Cyclic process on a p-h state diagram
· Determination of the efficiency
· Determining the coefficient of performance

Technical Description

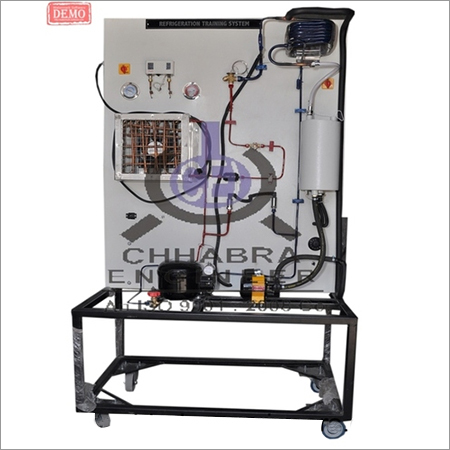

 The system is designed for the demonstration of the cyclic process on the p-h state diagram. The experimental set-up is clearly laid out on a metal panel. The use of commercially available components ensures a high degree of relevance to practice. A closed hot water circuit with electrical heater is used as a cooling load for the evaporator. The condenser is air-cooled. Electronic sensors provide measured values that are indicated on digital displays. The measured values are also transmitted to a data acquisition card that enables the data to be processed on a PC, e.g. the display of the cyclic process on a p-h state diagram.

Specification

[1] Mobile functional model of a refrigeration system
[2] lxwxh 1380x550x1850mm, 90kg
[3] PC data acquisition software under Windows NT/2000/X
[4] Hermetic piston compressor
[5] Coaxial evaporator
[6] Closed warm water circuit with tank, heater and circulating pump as cooling load
[7] Condenser with 2 fans, fan 29W each
[8] Digital displays indicating flow, temperature and pressure
[9] Refrigerant R134a, CFC-free
[10] 230V, 50Hz, 1 ph. or 120V, 60Hz, 1 ph
Piston compressor: power consumption: 97W at -10/32°C, refrigerating capacity: 222W at 5/32°C
Circulating pump, 3 stages, 60W: max. flow rate: 2.9m³/h, max. head: 4m
Coaxial evaproator: capacity: 2kW at 45°C condensing temperature, ΔT=7K
Measuring ranges:
2x pressure: -1...15bar, 1x power: 0...600W,
6x temperature: -40...150°C, 1x flow rate (water): 3...108ltr/h
