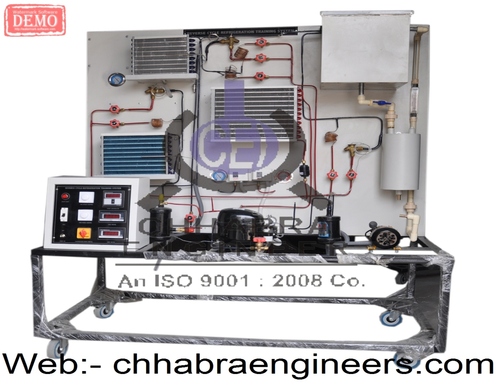

Reverse Cycle Refrigeration Training System

Reverse Cycle Refrigeration Training System
Reverse Cycle Refrigeration Training System
Product Code : CEI 108
Brand Name : Chhabra Engineers
Product Description

Reverse Cycle Refrigeration Training System

layout, function and main components of a heat
  pump
- Measurement of relevant pressures, temperatures,
  flow rates, current and voltage
- Illustration of the thermodynamic cyclic process in a
  p-h state diagram
- Comparison of different operating modes
- Comparison of different expansion elements
  (expansion valve, 4 capillaries)

Technical Description
contains a hermetic compressor, 4 heat exchangers, 3 expansion valves and 4 different interchangeable capillaries. The unit can be operated in different modes. 11 manually operated valves allow corresponding changes to be made to the refrigeration circuit.
Specification

[1] Air-to-water heat pump for cooling and heating
[2] 7 different operating modes possible, adjustable using 11 manually operated valves
[3] Hermetic piston compressor, finned tube condenser, 2 finned tube evaporators
[4] Coaxial tube heat exchanger (refrigerant - water/glycol)
[5] Water/glycol circuit with 3.5ltr tank and circulating pump
[6] Refrigeration circuit with intake pressure regulator, sight glasses, pressure regulators, 3 thermostatic expansion valves, 4 different capillary tubes
[7] CFC-free refrigerant R134a
[8] 230V, 50/60Hz, 1 ph. or 120V, 60Hz, 1 ph.
Compressor: power consumption 235W at
-10°C, refrigerating capacity: 580W at 5/32°C
Tube heat exchanger for R134a: Power: 1.6kW at
0°C, Δt=6K
Finned tube evaporator with fan: heat exchanger surface: 0.55m², power: 470W
Finned tube condenser with fan: heat exchanger surface: 1m², power: 750W
Capillary lengths: 300-500-1000-1500mm
