Set Of Training Panels

Set Of Training Panels
Set Of Training Panels
Send Inquiry
Product Code : CEI121
Brand Name : Chhabra Engineers
Price And Quantity
  • Minimum Order Quantity
  • 1 Piece
  • Price Range
  • 10000.00 - 80000.00 INR
Product Specifications
  • Type
  • Panels
  • Material
  • Stainless Steel, Other
  • Power
  • 50 Watt (w)
  • Power Source
  • Electrical
  • Voltage
  • 220-240 Volt (v)
  • Color
  • White
Product Description

Set of Training Panels

  • Layout of different refrigerant cycles
  • Layout and functioning of
  • sight glass/filter
  • flow meter
  • delivery and intake manometer
  • assembly aid
  • super heater
  • control valve and thermostatic expansion valve
  • 3-pole circuit breaker
  • electric two-position thermostat with switching
  • hysteresis

Technical Description

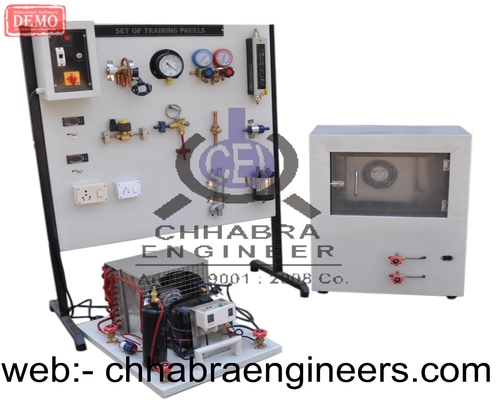

consists of 11 different training panels that can be mounted modulary on the basic unit. With the aid of the required accessories, the training panels and the basic unit can be combined to various refrigerant cycles.

[1] Design of simple refrigeration circuits w. panels
[2] Superheater: approx.. 2.5kW at -10°C evaporation temperature
[3] 3-pole circuit breaker, 230V, ~50Hz, 3kW
[4] Assembly aid: 4-way valve with sight glass
[5] Sight glass with moisture indicator
[6] Pressure controlled control valve
[7] Expansion valve -45…20°C

Measuring ranges:
- manometer intake side: -1…9bar
- manometer delivery side: -1…24bar
- rotameter: 3…41kg/h
- 2 thermostats: -50…


Trade Information
  • Payment Terms
  • Letter of Credit at Sight (Sight L/C), Letter of Credit (L/C), Cash in Advance (CID), Cash Advance (CA)
  • Supply Ability
  • 1000 Piece Per Month
  • Delivery Time
  • 1 Week
  • Main Export Market(s)
  • Africa, Middle East, Western Europe, Eastern Europe, South America, North America, Central America, Australia, Asia
  • Main Domestic Market
  • All India
