Vapour Compression Refrigeration Cycle

Vapour Compression Refrigeration Cycle
Vapour Compression Refrigeration Cycle
Product Code : CEI117
Brand Name : Chhabra Engineers
Product Description

Vapour Compression Refrigeration Cycle

Evaporation and condensation
- Cyclic process on the p-h state diagram
- Calculation of the heat transfer rate at evaporator
  and condenser
- Determination of efficiency and coefficient of
  performance

Technical Description

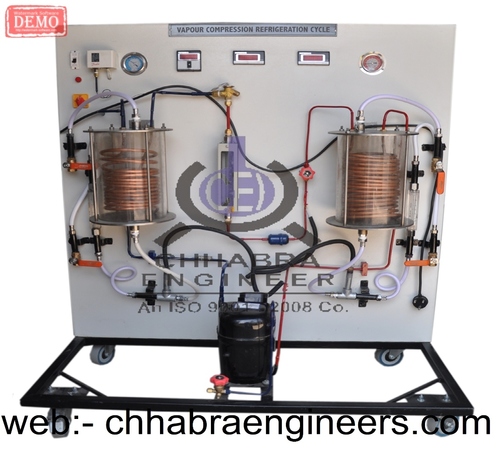

A simple refrigeration circuit is demonstrated with this clearly laid out benchtop unit. The evaporation and condensation processes are easily observed through the glass components. The function of the expansion valve (in the form of a float valve) can be seen. The changes in the refrigerant state can also be followed by measuring pressures and temperatures. A special environmentally friendly refrigerant is used at low pressure.

Specification

[1] Refrigeration circuit with transparent evaporator and condenser
[2] Condenser and evaporator with coil
[3] Expansion valve in form of a float can be clearly seen in operation
[4] Low pressure pressostat
[5] Temperature display with measuring point display, power meter, manometer in refrigerant cycle, flow meter for hot water, cold water and refrigerant circuit
[6] Adjustable safety valve
[7] CFC free refrigerant

Hermetic piston compressor
- power consumption: 1043W
- refrigerating capacity: 1909W at 0/32°C
- Evaporator capacity: approx. 2.8L
- Condenser capacity: approx. 2.8L
- Measuring ranges
- temperature: -20...200°C
- pressure: -1...1.5bar
- flow rate (water): 60...820cm³/min
- flow rate (refrigerant): 100...750L/h
- power: 0...10kW
